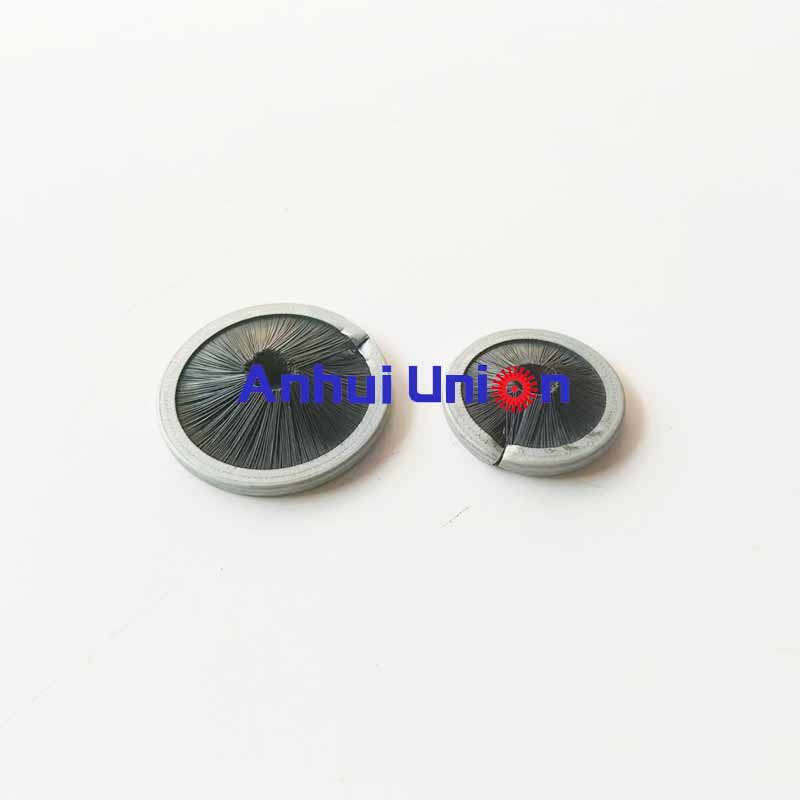

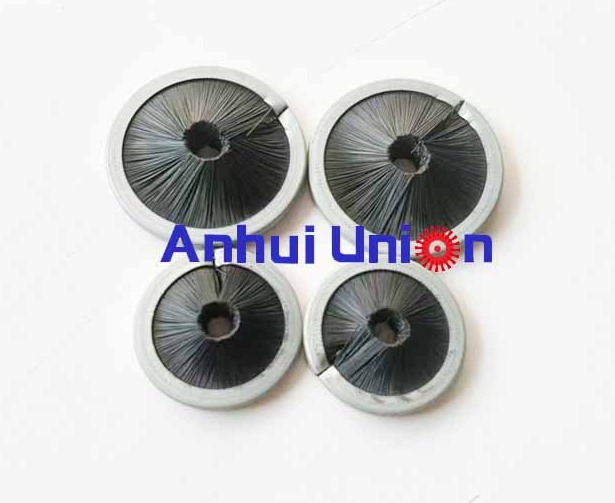

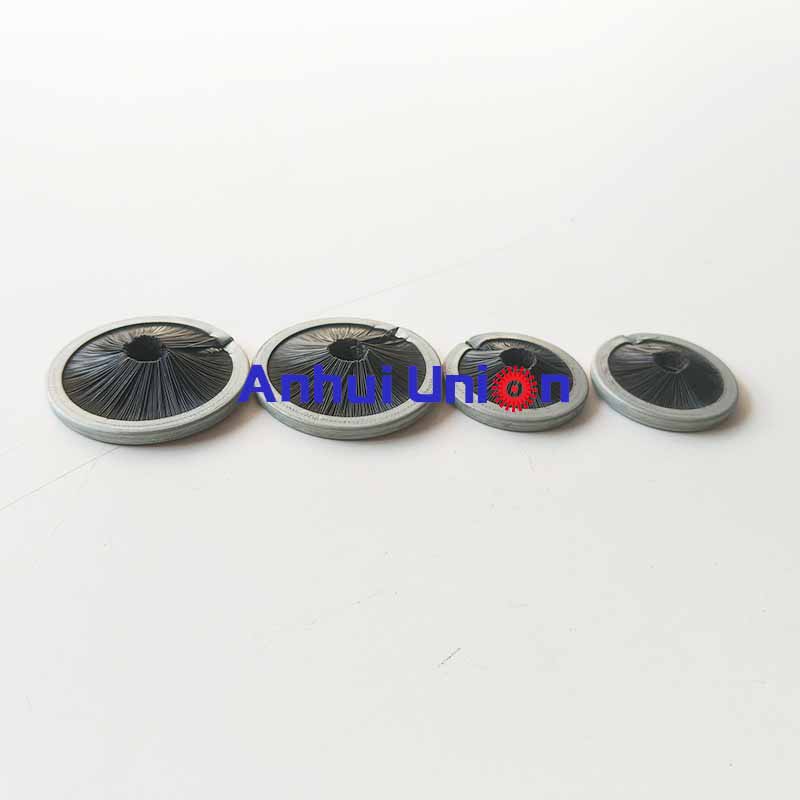

Our custom inverted or inside disc brushes are manufactured by taking a straight metal channel brush and forming it into a circle shape using our custom design process. The fiber fillings are then turned towards the center of the brush making this type of brush especially well suited for cleaning the outside surfaces of rods and shafts. Inverted discs also make excellent sealing devices.
Paiement :
T/T PaymentCaractéristique :
Customized sizeSupport :
Galvanized Steel /Stainless SteelFilament :
Nylon, PP, Wire, Tampico, Horse Hair or customizedInverted Disc Coil Brushes
Description

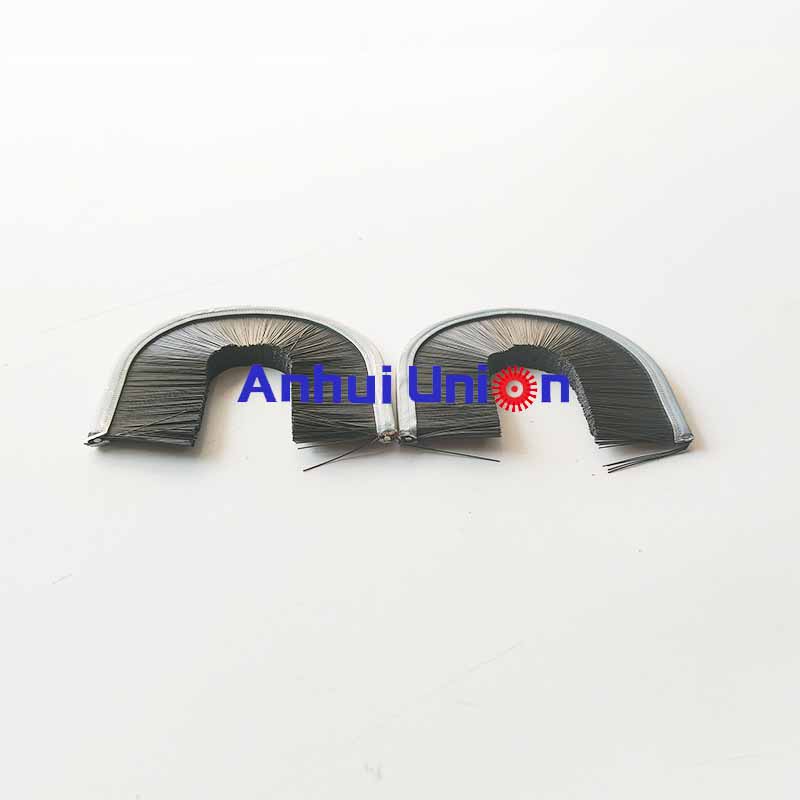

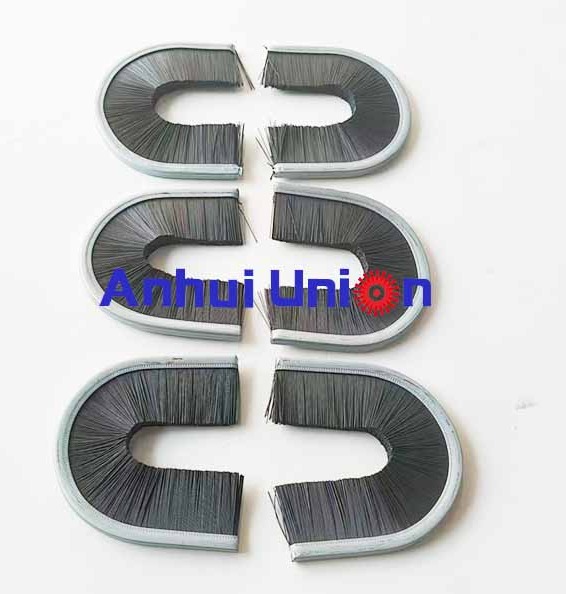

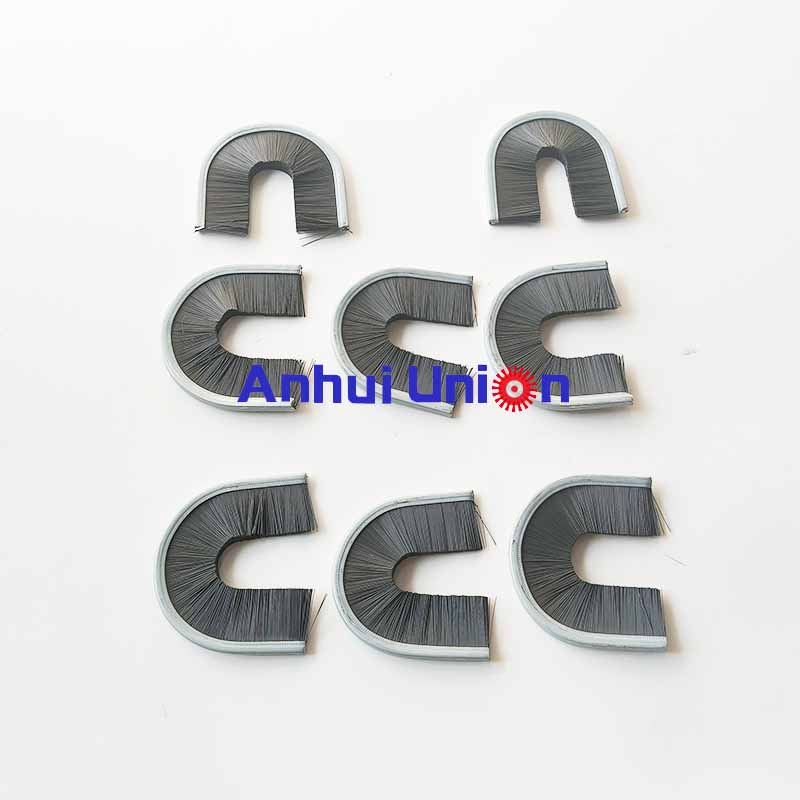

Inside Curve brushes have a metal channel along the outside diameter and filaments are pointed inward. The curved brush, or partial inside disk brush, can be made in any length required. Sometimes the metal channel length is specified in degrees of the circle or in actual measured brush length around the outside diameter.
Metal Backing Materials
-Galvanized Steel
-Stainless Steel
Fill Materials
-Nylon 6, 6.6, 6.12
-Polypropylene
-Polystyrene
-Tampico
-Horse Hair
-Wire
-Other materials available upon request

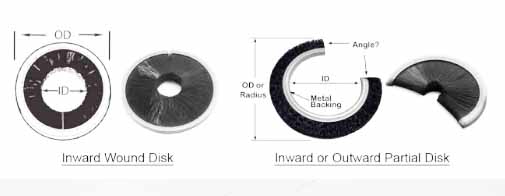

Drawing
